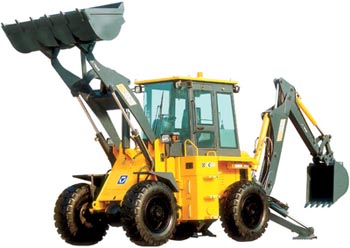

The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technical in domestic and international. Having adopted four wheel, hydraulic torque converter, hydraulic steering system, hydraulic. It is extensively used in the road maintenance, farm and developments getting clay for making brickiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up, etc. this machine has below characteristics:
The yuchai engine: low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability the spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make in time brake automatically, so it is more safely, humanization designs: the hand handle layout reasonable, manipulating is portable; steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable, the back wheel bridge can swing up and down round the center, it make wheel has well clinging, so the machine has good span and cross capability, optimized load work device: reasonable joint layout, dependable position limit function, lavelling bucket automatically in unload position, lacenning optimized load work device: reasonable joint layout, dependable position limit function,, lavelling bucket automatically in unload position, lacenning labor intensity, and the work range is larger, workforce is more sturdy and steady, the work efficiency is higher. Special middle placed backhoe and wing-spread support leg,. When the machine break up stones and do deeper dig work. It has stronger stability than other kind backhoe, of the craft brother the machine take the lead in using hydraulic scale forerunner valve control, manipulating is portable and orientation is exact. It may do multipul motion, work efficiency is high. Plush and unitary cab is designed according to person-machine’s principle. Widen view, sealed and quiver damped, air-condition is choice, comfortable and safety operation environment. Ten various machine tools may be choice to use, e.g: hydraulic break up hammer, quiver rammer, four unit as one bucket, tongs etc. the function is more comprehensive.
Description |
Specifications |
Unit |
Bucket capacity(heaped) |
1.0 |
m3 |
Digger capacity |
0.3 |
m3 |
Dumping clearance |
2700 |
mm |
Dumping reach |
950 |
mm |
Max. steering angle |
±35 |
° |
Max. steering angle of dig working device |
±85 |
° |
Tracing speed ⅰ(F/R) |
0-6.2 |
km/h |
Tracing speed ⅱ(F/R) |
0-12 |
km/h |
Tracing speed ⅲ (F/R) |
0-20 |
km/h |
Tracing speed ⅳ (F/R) |
0-33 |
km/h |
Back ⅰspeed |
0-8 |
km/h |
Back ⅱ speed |
0-28.5 |
km/h |
Diesel |
Yuchai |
|
Model |
YC4108 |
|
Modality |
|
|
Rated power |
65 |
kw |
Rated speed |
2500 |
r/min |
Wheel base |
2600 |
mm |
Tread |
1700 |
mm |
Tires |
16/70-24 |
|
Max. digging depth |
4400 |
mm |
Max. digging radius |
5471 |
mm |
Overall dimension(L x W x H) |
8000 x 2200 x 3350 |
mm |
Operating weitght |
9500 |
kg |
