  |→ Concrete Machinery → Concrete Truck Mixer → STEYR

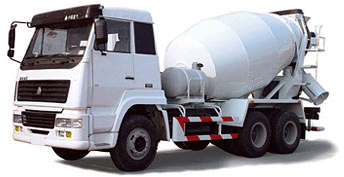

STEYR
Requset a Quote



- Engine: In-line 6-cylinder, 4-stroke, water cooled, pressurized intercooler, SINOTRUK WD615.68A diesel engine
- Engine output: Strong power of 225KW
- Engine: Fuel-saving and environmentally friendly, low fuel consumption, cost effective, Euro II
- Comfortable, roomy, and open cab

Items

Unit

Specifications

Mixing drum

Capacity

m3

13.00

Effective mixing capacity

m3

6.0

Max. drum diameter

mm

φ2280

Drum obliquity

°

11.5

Drum rotating speed

r/min

0~14

Discharging capability

Slump 5cm

S/m3

Approx.30

Slump 8~22cm

Approx.20

Fluid power system

Hydraulic pump

Model

Imported

Oil motor

Model



Imported

Reduction box with motor

Model

Imported

Hydraulic tank

L

54

Water supply system

Supply mode

Micro electric pump

Water pump

WP24-180B12

Water tank

L

360

Chassis

Chassis Model

ZZ1252N3846F

Wheel base

mm

3800+1350

Wheel track front / rear

mm

1939/1800

Max. running speed

km/h

≥73

Min. turning diameter

m

≤18.8

Min. ground clearance

mm

260

Engine

Engine Model

WD615.68A

Max. output

kw

225

Max. torque

N·m

1250 (1300-1600r/min)

Displacement

L/100km

≤32

Environmental standard

Euro II

Overall dimensions (L×W×H)

mm

9200×2490×3770


Note: All specifications on our website are subject to technical modifications without notice.
