  |→ Concrete Machinery → Concrete Truck Mixer

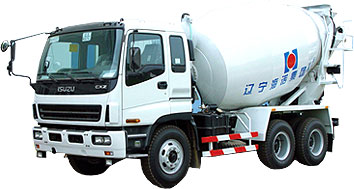

ISUZU
Requset a Quote


Characteristics of ISUZU Chassis
Luxury air conditioner and music center inside the cab with built-in bed. The position and height of the seat and the angle of the backrest can be adjusted. New instrument panel with alarming lights of each control system; open view with large windscreen and door.
It is equipped with new ISUZU environmental engine, which can not only provide sufficient output and torque, but also reduce fuel consumption and exhaust emission. The exhaust emission has reached up to Euro standard.
Both electric-powered and hand-operated cab tilting mechanisms are to facilitate the check, maintenance and service of the engine and gearbox.
The sensors can monitor the ground conditions and automatically control the optional bumper of the air suspension system to ensure optimum comfort and stability.

Items Unit Specifications
Mixing drum Capacity m3 13.00
Effective mixing capacity m3 5.5
Max. drum diameter mm φ2280
Drum length mm 4680
Drum obliquity ° 13
Drum rotating speed r/min 0~16
Discharging capability Slump 5cm S/m3 Approx.30
Slump 8~22cm Approx.20
Fluid power system Hydraulic pump Model Imported
Reduction box with motor Model Imported
Hydraulic tank L 54
Water supply system Supply mode Micro electric pump
Water pump WP24-180B12
Water tank L 250
Chassis Chassis Model ISUZU-CXZ51K
Wheel base mm 3225+1310
Wheel track front / rear mm 2065/1855
Max. running speed km/h 92
Min. turning diameter m ≤15.2
Min. ground clearance mm 255
Grade ability   ≥28%
Anti-tipping capability   ≥35o
Engine Engine Model 6WF1
Max. output kw 287(1800r/min)
Max. torque N·m 1863 (1100r/min)
Displacement L/100km ≤28
Environmental standard Euro II
Overall dimensions (L×W×H) mm 8450×2490×3655


Note: All specifications on our website are subject to technical modifications without notice.
