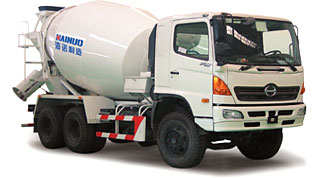

HINO
Requset a Quote

Features:

Compact design, easy operation.

Equipped with new powerful Hino engine meeting Euro II.

Excellent lighting device increasing safety at night.


Specifications>>

Items Unit Specifications
Mixing drum Capacity m3 13
Effective mixing capacity m3 5.5
Max. drum diameter mm φ2280
Drum length mm 4680
Drum obliquity ° 13
Drum rotating speed ?r/min 0~16
Discharging capability Slump 5cm S/m3 Approx.30
Slump 8~22cm Approx.20
Fluid power system Hydraulic pump Model Imported?
Oil motor Model Imported?
Reduction box with motor Model Imported?
Hydraulic tank L 54
Water supply system Supply mode Micro electric pump
Water pump WP24-180B12
Water tank L 250
Chassis Chassis Model HINO-FM2PKU
Wheel base mm 3380+1300
Wheel track front / rear mm 1915/1860
Max. running speed km/h ≥85
Min. turning diameter m ≤16.2
Min. ground clearance mm 265
Engine Engine Model HINO-P11C UB
Max. output kw 230/2150
Max. torque N·m 1127/1500
Environmental standard Euro II
Overall dimensions (L×W×H) mm 8450×2490×3650


Note: All specifications on our website are subject to technical modifications without notice.
