  |→　Concrete Machinery → Concrete Truck Mixer → FOTON

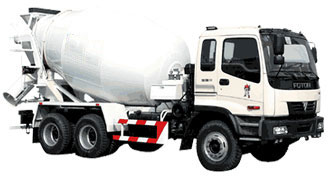

HNJ5251GJB
Requset a Quote

- Engine: In-line 6-cylinder, 4-stroke, water cooled, pressurized intercooler, SINOTRUK WD615.68A diesel engine
- Engine output: Strong power of 225KW
- Engine: Fuel-saving and environmentally friendly, low fuel consumption, cost effective, Euro II
- Comfortable, roomy, and open cab


Specifications>>

Items Unit Specifications
Mixing drum Capacity m3 10.8
Effective mixing capacity m3 5.5
Max. drum diameter mm φ2110
Drum length mm 4240
Drum obliquity ° 16
Drum rotating speed r/min 0~16
Discharging capability Slump 5cm S/m3 Approx.30
Slump 8~22cm Approx.20
Fluid power system Hydraulic pump Model Imported
Oil motor Model 　 Imported
Reduction box with motor Model Imported
Hydraulic tank L 54
Water supply system Supply mode Micro electric pump
Water pump WP24-180B12
Water tank L 250
Chassis Chassis Model BJ3258DLPJB-1
Wheel base mm 3575+1350
Wheel track front / rear mm 2010/1847
Max. running speed km/h ≥73
Min. turning diameter m ≤16.8
Min. ground clearance mm 260
Engine Engine Model 6C260
Max. output kw 192
Max. torque N·m 950
Displacement L 8.268
Environmental standard Euro II
Overall dimensions (L×W×H) mm 8800×2490×3670


Note: All specifications on our website are subject to technical modifications without notice.
