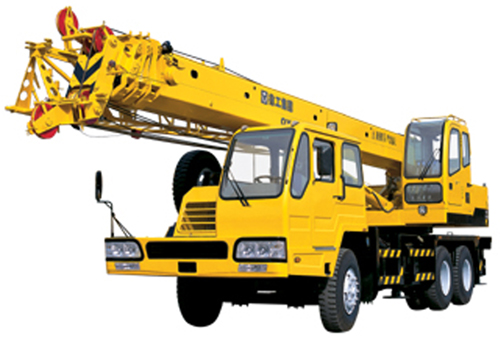

QY16D Truck Crane
QY16D Truck Crane adopts self-made truck crane chassis with Shanghai D6114 engine or Hangzhou WD415.21 engine.
4-section telescopic boom of all-round hexagonal cross-section has powerful lifting capacity. The main boom gives a maximum lifting height of 30.7m and plus jib offers a maximum lifting height of 38.5m. Every performance is in the lead in China.
A gravity lowering device equipped in winch system facilitates working efficiency; constant-closed external meshing brake makes operation safe and reliable.
Side-mounted jib, double cylinders for front support elevating, fully hydraulic drive and double H-shaped outriggers.
Large box type frame of torsion resistance, and wide outrigger extension greatly improve load lifting capacity.
Guide roller meticulously designed avoids rope-disorder.
Swing system with cycloid cylindrical lantern gear reducer can absorb shock effectively, run smoothly.
Driver’s cab is equipped with damping adjustable seat and adjustable steering wheel. Air conditioner is available.
Newly designed operator’s cab is spacious, comfortable and wide vision.
Air circuit with a dryer improves its reliability greatly.
Well-equipped safety devices, such as automatic moment limiter, hoist height limiter and working radius indicator. Illuminators facility operation at night.
The vehicle, equipped with devices for use in plateau, suits many kinds of working environment.
Technical Data for Lifting Operation
| Classificatory |
Item |
Unit |
Parameter |
Engine |
Model |
|
D6114ZLQ5B |
Outline dimension |
Overall length |
mm |
11990 |
Overall width |
mm |
≤2500 |
Overall height |
mm |
3350 |
Wheel base |
Axle 1, Axle 2 |
mm |
4025 |
Axle 2, Axle 3 |
mm |
1350 |
Mass |
Total mass in travel state |
kg |
24000 |
Axle load |
Axle 1 |
kg |
6400 |
Axle 2 |
kg |
17600 |
Travel performance |
Travel speed |
Max. travel speed |
km/h |
≥70 |
Min. stable travel speed |
km/h |
3～4 |
Turning diameter |
Min. turning diameter |
m |
≤20 |
Min. turning diameter at boom tip |
m |
≤23 |
Min. ground clearance |
mm |
270 |
Approach angle |
(°) |
21 |
Departure angle |
(°) |
10 |
Braking distance (at 30km/h with full load) |
m |
9.5 |
Max. grade-ability |
％ |
24 |
Fuel consumption for 100km |
L |
35 |
Main Technical Data for Lifting Operation
| Classificatory |
Item |
Unit |
Parameter |
Lifting performance |
Max. total rated lifting capacity |
t |
16 |
Min. rated working radius |
m |
3 |
Turning radius at turntable tail |
m |
≤3.12 |
Max. load moment |
Base boom |
kN.m |
686 |
Fully extended boom |
kN.m |
388 |
Fully extended boom + Jib |
kN.m |
254 |
Outrigger span |
Longitudinal |
m |
4.6 |
Lateral |
m |
5.4 |
Lifting height |
Base boom |
m |
≥9.9 |
Fully extended boom |
m |
≥30.7 |
Fully extended boom + Jib |
m |
≥38.5 |
Working speed |
Boom raising time |
s |
≤60 |
Boom full extension time |
s |
≤95 |
Max. swing speed |
r/min |
≥2.5 |
Hoist speed
(single line) |
Main winch |
Full load |
m/min |
≥54 |
No load |
m/min |
≥100 |
Aux. winch |
Full load |
m/min |
≥54 |
No load |
m/min |
≥100 |
Noise limit |
Crane exterior noise |
dB (A) |
≤118 |
At seated position |
dB (A) |
≤90 |
