QY16C
Requset a Quote

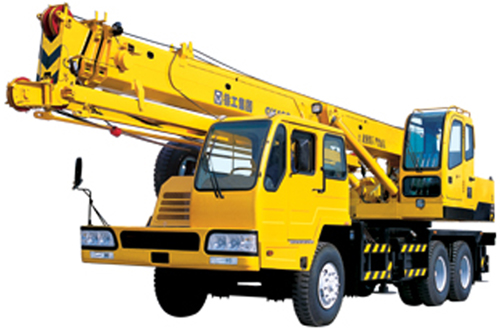

QY16C Truck Crane
QY16C Truck Crane uses self-made truck crane chassis with Shanghai D6114 engine or Hangzhou WD415.21 engine.
A gravity-lowering device fitted in the winch improves working efficiency. Constant closed external meshing brake makes operation safe and reliable.
Newly designed 3-section all-round hexagonal boom profile with single cylinder plus wire ropes for telescoping increase load lifting capacity.
Belly-mounted jib, double cylinders for front support elevating, fully hydraulic drive and double H-shaped outriggers.
Large box type frame, high torsion resistance and wide outrigger extension greatly improve lifting performance.
Meticulously designed guide sheaves avoid rope disorder on the winch.
Slewing gear with cycloid cylindrical lantern gear reducer absorbs shocking for smooth work.
All steel driver’s cab and operator’s cab. Air conditioner in driver’s cab is for option. Driver’s cab equipped with luxurious adjustable seat and adjustable steering wheel makes operation more convenient.
Air dryer added in air circuit improves the reliability of the air system.
Well-equipped safety devices, such as hoist limit switch, working radius indicator, etc., and also with illuminators for night operation.
QY16 plateau type, available for option of customers in plateau area, is suitable for operation in plateau foul conditions.
Technical Data for Lifting Operation


Classificatory

Item

Unit

Parameter

Engine

Model

D6114

Outline dimension

Overall length

mm

11990

Overall width

mm

2500

Overall height

mm

3350

Wheel base

Axle 1, Axle 2

mm

4025

Axle 2, Axle 3

mm

1350

Mass

Total mass in travel state

kg

22900

Axle load

Axle 1

kg

5240

Axle 2

kg

17660

Travel performance

Travel speed

Max. travel speed

km/h

70

Min. stable travel speed

km/h

4

Turning diameter

Min. turning diameter

m

20

Min. turning diameter at boom tip

m

23

Min. ground clearance

mm

270

Approach angle

(°)

21

Departure angle

(°)

10

Braking distance (at 30km/h with full load)

m

9.5

Max. grade-ability

24

Fuel consumption for 100km

L

35

Power

Engine rated output

kW/(r/min)

158/2200

Engine rated torque

N.m/ (r/min)

790/1400

Engine rated speed

r/min

2200


Main Technical Data for Lifting Operation

Classificatory

Item

Unit

Parameter

Lifting performance

Max. total rated lifting capacity

t

16

Min. rated working radius

m

3

Turning radius at turntable tail

m

≤3.12

Max. load moment

Base boom

kN.m

711

Fully extended boom

kN.m

449

Fully extended boom + Jib

kN.m

186

Outrigger span

Longitudinal

m

4.6

Lateral

m

5.4

Lifting height

Base boom

m

≥9.9

Fully extended boom

m

≥23.6

Fully extended boom + Jib

m

≥30.8

Working speed

Boom raising time

s

≤60

Boom full extension time

s

≤75

Max. swing speed

r/min

≥2.5

Hoist speed
(single line)

Main winch

Full load

m/min

≥54

No load

m/min

≥100

Aux. winch

Full load

m/min

≥54

No load

m/min

≥100

Noise limit

Crane exterior noise

dB (A)

≤118

At seated position

dB (A)

≤90


Note: All specifications on our website are subject to technical modifications without notice.
