  |→　Lifting Machinery → All Terrain Truck Crane

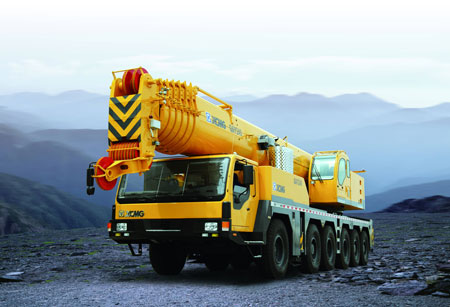

QAY240
Requset a Quote

Classification
Item
Unit
QAY240
Dimension
　
Overall length
mm
15918
Overall width
mm
3080
Overall height
mm
4000
　
　
Weight
Overall weight in travel
kg
72000
Axle load
Axle 1, 2
kg
12000
Axle 3, 4
kg
12000
Axle 5
kg
12000
　
　
　
　
Power
Superstructure engine
Rated power
kw/(r/min)
194/2100
Rated torque
N.m/(r/min)
1050/1400
Rated speed
r/min
2100
Carrier engine
Rated power
kw/(r/min)
420/1800
Rated torque
N.m/(r/min)
2700/1080
Rated speed
r/min
1800
Max. travel speed
km/h
71
Min. turning diameter
m
24
Min. ground clearance
mm
280
Approach angle
°
25
Departure angle
°
18­
Braking distance (at 30km/h)
m
≤10
Max. grade ability
%
48
Fuel consumption for 100km
l
90


Classification
Item
Unit
QAY240
Main performance
Max. rated total lifting capacity
t
240
Min. rated working radius
m
3
Turning radius at turntable tail (counterweight)
mm
480
Max. lifting torque
Base boom
kN.m
7797
Fully extended boom
kN.m
2940
Outrigger span
Longitudinal/lateral
m
9.625/8.7(6.5)
Lifting height
Base boom
m
12.6
Fully extended boom
m
65.6
Fully extended boom＋ jib
m
85.7
Boom length
Base boom
m
13.2
Fully extended boom
m
67
Fully extended boom＋ jib
m
87
Working speed
Boom luffing
Boom raising
m
65
Boom extension/retraction
Full extension/full retraction
m
650
Max. swing speed
r/min
1.6
Outrigger telescoping time
Outrigger beam
Extension
S
50
Retraction
S
40
Outrigger jack
Extension
S
50
Retraction
S
45
Lifting speed (single rope, layer 4)
Main winch
No load
m/min
115
Aux. winch
No load
m/min
118



Note: All specifications on our website are subject to technical modifications without notice.
