  |→ Lifting Machinery → All Terrain Truck Crane

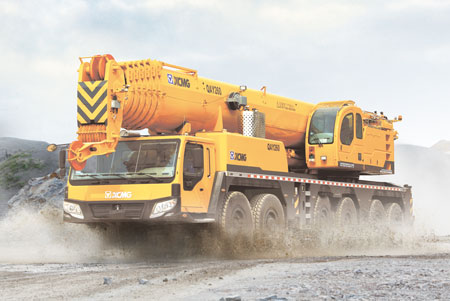

QAY260
Requset a Quote

Dimension
Unit
QAY260
Overall length
mm
15850
Overall width
mm

Overall height
mm
4000
Weight
Overall weight in transport
kg
72000
Front axle load
kg

Rear axle load
kg

Power
Engine model

TAD722VE
OM502LA.E3A/3
Engine rated power
kW/(r/min)
194/2100
420/1800
Engine rated torque
N.m/(r/min)
2700/1300
Travel
Max. travel speed
km/h
72
Min. turning diameter
m
23
Min. ground clearance
mm

Approach angle
°
16
Departure angle
°
18
Max. grade ability
%
50
Fuel consumption for 100km
L

Main performance
Max. rated total lifting capacity
t
260
Min. rated working radius
mm

Turning radius at turntable tail
m

Max. lifting torque
kN.m
7980
Base boom
m

Fully extended boom
m
70
Fully extended boom+ jib
m
101.5
Longitudinal outrigger span
m
8.7
Lateral outrigger span
m
8.8
Working speed
Boom luffing time
s

Boom full extension time
s

Max. swing speed
r/min

Max. speed of main winch (single rope) (no load)
m/min

Max. speed of aux. winch (single rope) (no load)
m/min



Note: All specifications on our website are subject to technical modifications without notice.
