Dimension

Unit

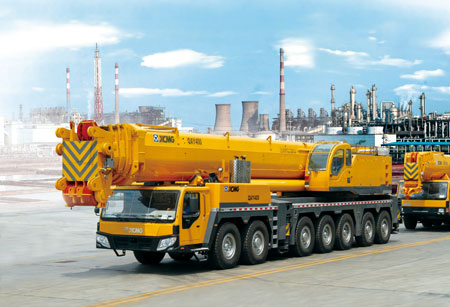

QAY400

Overall length

mm

18850

Overall width

mm

Overall height

mm

4000

Weight

Overall weight in transport

kg

84000

Front axle load

kg

Rear axle load

kg

Power

Engine model

TAD750VE
OM502LA.III/5

Engine rated power

kW/(r/min)

200/2300
420/1800

Engine rated torque

N.m/(r/min)

2700/1080

Travel

Max. travel speed

km/h

70

Min. turning diameter

m

25

Min. ground clearance

mm

Approach angle

°

16

Departure angle

°

14

Max. grade ability

%

40

Fuel consumption for 100km

L

Main performance

Max. rated total lifting capacity

t

400

Min. rated working radius

mm

Turning radius at turntable tail

m

Max. lifting torque

kN.m

12152

Base boom

m

Fully extended boom

m

Fully extended boom+ jib

m

Longitudinal outrigger span

m

9.5

Lateral outrigger span

m

9.8

Working speed

Boom luffing time

s

Boom full extension time

s

Max. swing speed

r/min

Max. speed of main winch (single rope) (no load)

m/min

Max. speed of aux. winch (single rope) (no load)

m/min
