Dimension

Unit

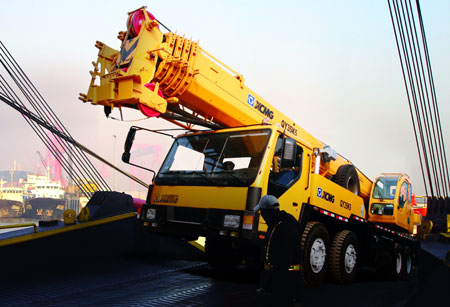

QY35K5

Overall length

mm

12620

Overall width

mm

2500

Overall height

mm

3350

Weight

Total weight in travel

kg

36930

Front axle load

kg

12330

Rear axle load

kg

24600

Power

Engine model

SC9DK320Q3

Engine rated power

kW/(r/min)

235 / 2200

Engine rated torque

N.m/(r/min)

1250 / 1400

Travel

Max. travel speed

km/h

75

Min. turning diameter

m

19.5

Min. ground clearance

mm

260

Approach angle

°

17

Departure angle

°

15.7

Max. grade ability

%

40

Fuel consumption for 100km

L

30

Main performance

Max. rated total lifting capacity

t

35

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.055

Max. lifting torque

kN.m

1200

Base boom

m

10.5

Fully extended boom

m

39.6

Fully extended boom+ jib

m

54.6

Longitudinal outrigger span

m

5.35

Lateral outrigger span

m

6

Working speed

Boom luffing time

s

68

Boom full extension time

s

≤155

Max. swing speed

r/min

≥2.5

Max. speed of main winch (single rope)

m/min

≥130

Max. speed of aux. winch (single rope)

m/min

≥130
