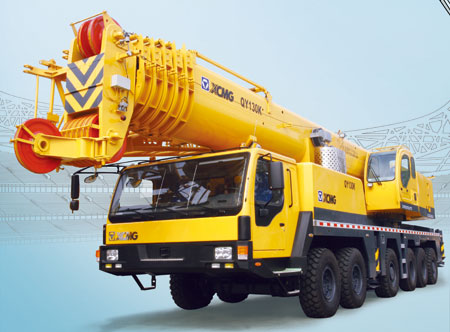

Classificatory

Item

Unit

Parameter

Outline dimension

Overall length

mm

14950

Overall width

mm

3000

Overall height

mm

3950

Axle base

Axle 1, Axle 2

mm

1420

Axle 2, Axle 3

mm

2420

Axle 3, Axle 4

mm

1875

Axle 4, Axle 5

mm

1350

Axle 5, Axle 6

mm

1400

Wheel base

mm

2610/2307

Mass

Total mass in travel state

kg

62000

Axle load

Axle 1, Axle 2

kg

8800/8800

Axle 3, Axle 4

kg

9200/12700

Axle 5, Axle 6

kg

12700/9800

Power

Crane superstructure
engine

Rated power

kw/(r/min)

162/2100

Rated torque

N.m/(r/min)

854/1400

Rated speed

r/min

2100

Crane carrier engine

Rated power

kw/(r/min)

390/1800

Rated torque

N.m/(r/min)

2400/1080

Rated speed

r/min

2000

Travel performance

Travel speed

Max. travel speed

km/h

70

Min. stable travel speed

km/h

2.1

Min. turning diameter

m

24

Min. ground clearance

mm

275

Approach angle

°

23

Departure angle

°

14

Braking distance (at 30km/h)

m

10

Max. grade-ability

40

Fuel consumption for 100km

L

80

Main Technical Data for Lifting Operation

Classificatory

Item

Unit

Parameter

Lifting performance

Max.total rated lifting capacity

t

130

Min.rated working radius

m

3

wing radius at counterweight tail

mm

4600

Max. load moment

Base boom

kN.m

5003

Fully extended boom

kN.m

2752

Outrigger span

Longitudinal

m

7.56

Lateral

m

7.6(5.2)

Boom height

Base boom

m

13

Fully extended boom

m

58

Fully extended boom + Jib(28m)

m

86.5

Boom length

Base boom

m

13

Fully extended boom

m

58

Fully extended boom + Jib(20m)

m

81

Jib offset angle

01530

Working speed

Boom elevating time

Boom raising

s

60

Boom telescoping time

Full extending

s

420

Full retracting

s

400

Max. swing speed

r/min

1.8

Outrigger telescoping time

Outrigger beam

Synchronous extension

s

50

Synchronous retraction

s

40

Outrigger jack

Synchronous extension

s

50

Synchronous retraction

s

45

Hoist speed
(single line at 4th layer)

Main winch (Null load)

m/min

115

Aux.winch (Null load)

m/min

115

Noise

Crane exterior noise

dBA

118

At seated position

dBA)

90

Note: All specifications on our web-site are subject to technical modifications without notice.
