Travel Operation
Category		Items		Unit	Parameters

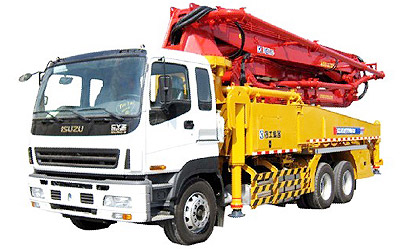

Chassis		Model			CYZ51Q
		Make			Japan Isuzu
		Max.speed		km/h	85
		Max.gradeability			34%
		Min.turning diameter		m	17.6
		Brake distance		m	≤7
		Axle base		mm	4595+1310
		Wheelbase (front/rear)		mm	2065/1850
		Approach/departure angle		°	23.5/10
		Min.ground clearance		mm	240
		Tire			295/80R22.5
Engine		Model			6WF1A
		Output power		kw/(r/min)	265/1800
		Max.torque		N.m/(r/min)	1422/1100
		Displacement		L	14.256
		Emission standard			China Ⅲ  GBⅢ
Others		Dimension (L×W×H)		mm	11990×2500×3980
		Overall weight		kg	28400
		Fuel tank volume		L	380
		Fuel consumption (100km)		L/100km	40
Working Condition
Pumping system	Theoretical capacity（High/low pressure）			m3/h	80/140
	Pumping pressure（High/low pressure）			Mpa	6.38/10.7
	Theoretical frequency（High/low pressure）			Times/min	14/23
	Max.aggregate diameter			mm	40
	Loading height			mm	1480
	Slump			mm	12-23
Placing boom	Reach height			m	38
	Reach depth			m	25.1
	Slewing radius			m	34.0
	Slewing angle			°	365
	Stretch angle of 1st boom			°	90
	Stretch angle of 2nd boom			°	180
	Stretch angle of 3rd boom			°	245
	Stretch angle of 4th boom			°	233
	Outrigger span		Longitudinal	mm	6825
			Transverse span of front outrigger	mm	6200
			Transverse span of rear outrigger	mm	7230
Others	Batching				S valve
	Lubrication				Automatic lubrication
	Control				Manual/remote control
	Change of High/low pressure				Automatic
	Water tank volume			L	500
	Max.pressure of water pump			MPa	2
