  |→ Concrete Machinery → Truck-Mounted Concrete Pump

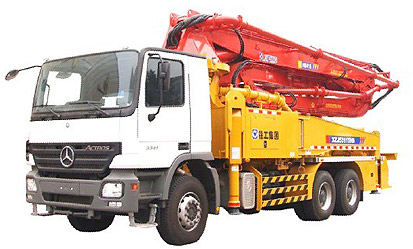

HB41B
Requset a Quote

Travel Operation
Category
Items
Unit
Parameters
Chassis
Model

Actros3341
Make

Germany BENZ
Max.speed
km/h
85
Max.gradeability

61.9%
Min.turning diameter
m
19.8
Brake distance
m
≤7
Axle base
mm
4500+1350
Wheelbase (front/rear)
mm
2034/1804
Approach/departure angle
°
16/10
Min.ground clearance
mm
300
Tire

315/80R22.5
Engine
Model

OM501LA.Ⅲ/17
Output power
kw/(r/min)
300/1800
Max.torque
N.m/(r/min)
2000/1080
Displacement
l
11.946
Emission standard

China Ⅲ  GBⅢ
Others
Dimension (L×W×H)
mm
11060×2500×3990
Overall weight
kg
30600
Fuel tank volume
l
400
Fuel consumption (100km)
l/100km
40
Working Condition
Pumping system
Theoretical capacity(High/low pressure)
m3/h
70/140
Pumping pressure(High/low pressure)
Mpa
11.8/6.38
Theoretical frequency(High/low pressure)
Times/min
15/27
Max.aggregate diameter
mm
40
Loading height
mm
1530
Slump
mm
12-23
Placing boom
Reach height

m
40.5
Reach depth

m
27.5
Slewing radius
m
36
Slewing angle
°
±270
Stretch angle of 1st boom
°
90
Stretch angle of 2nd boom
°
180
Stretch angle of 3rd boom
°
180
Stretch angle of 4th boom
°
240
Stretch angle of 5th boom
°
250
Outrigger span
Longitudinal
mm
7800
Transverse span of front outrigger
mm
8530
Transverse span of rear outrigger
mm
7200
Others
Batching

S valve
Lubrication

Automatic lubrication
Control

Manual/remote control
Water tank volume
L
600
Max.pressure of water pump
MPa
2


Note: All specifications on our website are subject to technical modifications without notice.
