  |→ Concrete Machinery → Truck-Mounted Concrete Pump

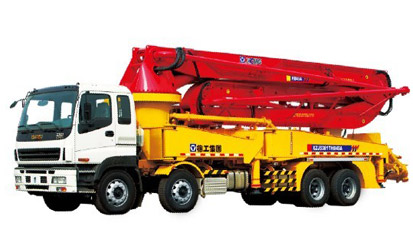

HB46A
Requset a Quote

Travel Operation
Category
Items
Unit
Parameters
Chassis
Model

CYH51Y
Make

Japan Isuzu
Max.speed
km/h
89
Max.gradeability

34%
Min.turning diameter
m
23.8
Brake distance
m
≤10
Axle base
mm
1850+4605+1310
Wheelbase (front/rear)
mm
2065/2065/1850/1850
Approach/departure angle
°
23/10
Min.ground clearance
mm
240
Tire

295/80R22.5
Engine
Model

6WF1D
Output power
kw/(r/min)
287/1800
Max.torque
N.m/(r/min)
1863/1100
Displacement
L
14.256
Emission standard

China Ⅲ  GBⅢ
Others
Dimension (L×W×H)
mm
12665×2500×3995
Overall weight
kg
38400
Fuel tank volume
L
400
Fuel consumption (100km)
L/100km
40
Working Condition
Pumping system
Theoretical capacity(High/low pressure)
m3/h
90/150
Pumping pressure(High/low pressure)
Mpa
13/8
Theoretical frequency(High/low pressure)
Times/min
13/21
Max.aggregate diameter
mm
40
Loading height
mm
1540
Slump
mm
12-23
Placing boom
Reach height

m
46
Reach depth

m
31.37
Slewing radius
m
41.8
Slewing angle
°
370
Stretch angle of 1st boom
°
90
Stretch angle of 2nd boom
°
180
Stretch angle of 3rd boom
°
180
Stretch angle of 4th boom
°
250
Stretch angle of 5th boom
°
250
Outrigger span
Longitudinal
mm
9950
Transverse span of front outrigger
mm
10320
Transverse span of rear outrigger
mm
9660
Others
Batching

S valve
Lubrication

Automatic lubrication
Control

Manual/remote control
Change of High/low pressure

Automatic
Water tank volume
 L
600
Max.pressure of water pump
 MPa
2


Note: All specifications on our website are subject to technical modifications without notice.
