Model

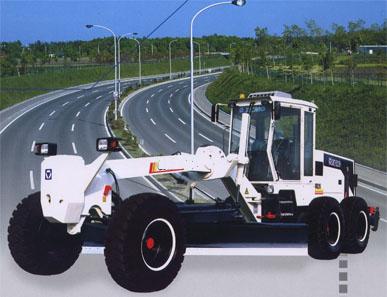

GR180(CE)

Basic specification

Engine model

CUMMINSCTAA8.3-C

rated power/speed

138kw/2200rpm

dimension(standard)

9298*2601*3430mm

operating weight(standard)

15400kg

Tire size

17.5-25RP12

Min.Ground clearance

430mm

Distance between front and rear axles

6266mm

Distance between middle and rear wheels

1639mm

Operating specification

Max.Steering angle of front wheels

±45°

Max.Lean angle of front wheels

±17°

Max .Oscillation angle of front axle

±15°

Frame articulation angle

±25°

Min. Turning radius using articulation

7.8mm

Blade

Max.Lifting height

460mm

Max.Depth of cutting

500mm

Max.blade position angle

90°

Blade cutting angle

28°～70°

Circle reversing rotation

360°

Moldboard width *height

3965*610mm

Performance specification

Travelling speed (forward)

5、8、11、19、23、38km/h

Travelling speed (reverse)

5、11、23km/h

Max.Tractive force(F=7.5)

80kN

Max.gradeability

20°

Optional attachments and accessories

·Scarifier ·Front dozer blade
·Rolling-plate type slewing mechanism ·Automatic leveling unit
·Tubeless tire ·Rear ripper ·ROPS cab
·Hydraulic swing chassis pin
· Front dozer blade with floating mechanism
